Water spray retort autoclave designed into 3 modes of water spray for handling various containers of high temperature sterilization.

1. Indirect heating and indirect cooling, the sterilization process water does not directly contact the cooling water to avoid secondary pollution to the food, and no water treatment chemicals are required;

2. A small amount of sterilization process water quickly circulates heating, sterilization, and cooling, without exhaust before heating, low noise and save steam energy;

3. One-key operation, when products enter retort and closes the door, press the sterilization button to complete the entire sterilization process;

4. The whole process adopts PLC automatic control, and the formula is equipped with multi-level passwords, which eliminates the possibility of misoperation;

5. With chain in retort, it is easy for baskets in and out of retort to save manpower;

6. The condensed water from one side of the heat exchanger can be recycled to save water and energy;

7. Equipped with triple safety interlock to prevent misoperation and avoid accidents;

8. It adopts double safety valves and double pressure sensors to eliminate potential safety hazards;

9. After the equipment is restored from power failure, the program can automatically restore to the state before the power failure to reduce losses;

10. Linear control with multi-stage heating and cooling to ensure the uniform sterilization effect of each batch of products, and the heat distribution in the sterilization stage able to reach ±0.4°C.

Application Products

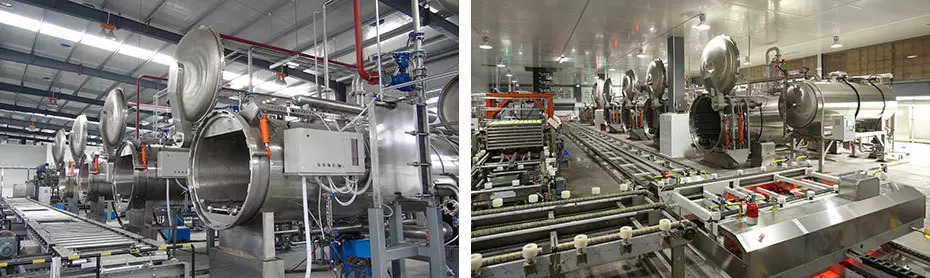

Customer Site
Key words:
- Water Spray Retort
1. Put the products into retort and close the door;

2. According to the filling temperature requirement of the products, the process water whose temperature is preheated to a set value will be injected from upper tank into retort till the liquid level set by the process;

3. The process water will be circulated in retort by a circulating pump and keep being heated up to the set value of process through the heat exchanger ;

4, During sterilization phase, the circulation pump keeps running to keep the temperature in retort, and once the temperature fluctuates, the proportional valve will automatically the amount of steam to ensure temperature stable;

5. When the holding phase ends, steam for heat exchnager will stop;

6. Cooling water be injected to the heat exchanger for cooling the process water and products in retort;

7. Sterilization modes options: shower type, two-side spray, full spray.

Model	Dia.	Drum L.	Overall L.	Overall W.	Overall H.	Volume	Steam Consumption	Power	Tray	Basket	Design T.	Design P.	Testing P.
Model	（mm）	（mm）	（mm）	（mm）	（mm）	（m³）	（mm）	（kw）	（Set）	（pcs）	（℃）	（MPa）	（MPa）
ZLPH/DL 900-2K	900	1800	3950	1550	2500	1.32	40	6.5	-	2	147	0.35	0.44
ZLPH/DL 1000-3K	1000	2400	3450	1850	2600	2.12	90	6.5	-	3
ZLPH/DL 1200-4K	1200	3600	4450	2150	2700	4.46	180	12.5	-	4
ZLPH/DL 1200-5K	1200	4000	4850	2150	2700	4.92	200	12.5	-	5
ZLPH/DL 1500-4K	1500	4200	5100	2500	3550	8.17	330	12.5	-	4
ZLPH/DL 1500-5K	1500	5250	6150	2500	3700	10.02	420	12.5	-	5
ZLPH/DL 1500-6K	1500	6300	7200	2550	3850	11.88	510	12.5	-	6
ZLPH/DL 1600-4K	1600	5500	6750	2600	3950	11.96	520	19.5	-	4
ZLPH/DL 1600-5K	1600	6600	7700	2700	4000	14.17	620	19.5	-	5
ZLPH/DL 1600-6K	1600	7100	8200	2700	4000	15.17	670	19.5	-	6
