Twin Water Immersion Retort
Hotline：
Email:
- Description
- Working principle
- Parameter
- Video
-
- Commodity name: Twin Water Immersion Retort
- Commodity ID: 1078690968615145472
Water immersion retort autoclave with 2 tanks，using preheated water to rapidly heat products for short cycle time and better taste.
1. The two retorts share one hot water tank to preheat and store hot water, and the retorts can work at the same time to save energy and improve efficiency;
2. Preheat the sterilization process water, which can quickly fill the lower tank (<3min) while sterilization, the product heats up quickly, and the output is high;
3. It is heated by a patented water-steam mixer, with high steam utilization and low noise;
4. The newly designed liquid flow switching device uses the sterilization water, down, left and right to switch continuously, circulating flow, no dead ends, and the heat distribution in the sterilization stage is controlled at ±0.5℃;
5. Equipped with negative pressure safety device to avoid manual misoperation and form negative pressure to ensure the safety of the equipment;
6. The whole process adopts PLC automatic control, and the formula is equipped with multi-level passwords, which eliminates the possibility of misoperation;
7. It can be driven by a chain inside the kettle, which is convenient for in and out of the basket, saving manpower;
8. Equipped with triple safety interlock to prevent misoperation of workers and avoid accidents;
9. After the equipment is restored from power failure, the program can automatically restore to the state before the power failure to reduce losses.Application Products

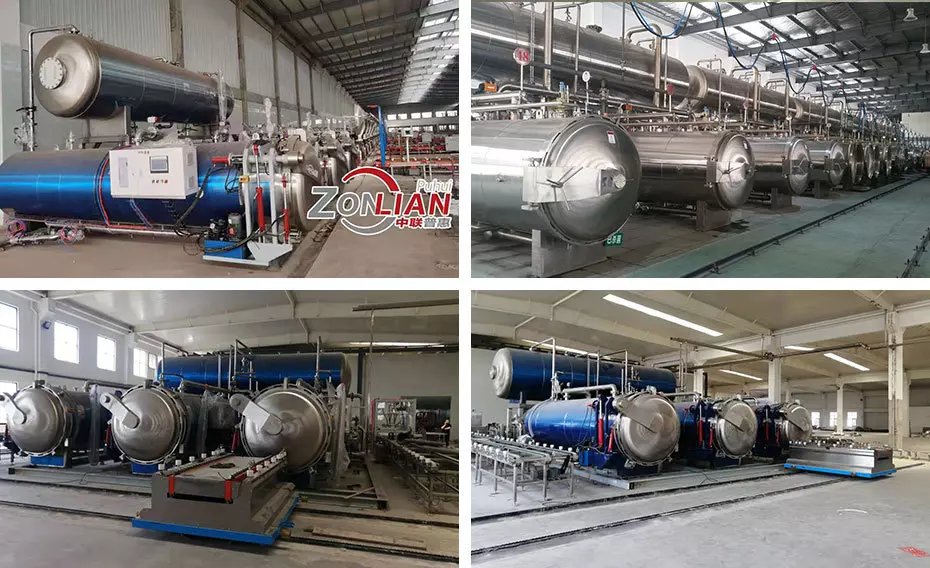

Customer Site
Key words:- Twin Water Immersion Retort
-
1. The hot water tank is heated before the shift to reach the set process temperature;
2. Put the product into the sterilization kettle and close the kettle door;
3. Turn on the balance device, the sterilization process water in the hot water tank is pumped into the sterilization kettle through a water pump, and reaches the set level of the process, and the balance device is closed;
4. Use the circulating pump to circulate the sterilization process water in the kettle, the steam is injected through the water-steam mixer, and enters the cycle to heat up to the sterilization temperature set by the process;
5. After reaching the sterilization temperature, the circulating pump is always on;
6. Entering the sterilization stage, when the temperature fluctuates, the amount of steam is controlled by an automatic valve to achieve stable temperature control;
7. After the sterilization phase is over, stop injecting steam into the kettle;
8. Turn on the balance device, the sterilization process water in the sterilization kettle is pumped back to the hot water tank through the water pump, and stored for the next sterilization use;
9. Close the balance device, and inject cooling water into the sterilization kettle through the cold water pump to cool the water and products in the kettle. -
Model Dia. Drum L. Overall L. Overall W. Overall H. Volume Steam Consumption Power Tray Basket Design T. Design P. Testing P. （mm） （mm） （mm） （mm） （mm） （m³） （mm） （kw） （Set） （pcs） （℃） （MPa） （MPa） ZLPH/DL 900-2K 900 1800 3950 1550 2500 1.32 40 6.5 - 2 147 0.35 0.44 ZLPH/DL 1000-3K 1000 2400 3450 1850 2600 2.12 90 6.5 - 3 ZLPH/DL 1200-4K 1200 3600 4450 2150 2700 4.46 180 12.5 - 4 ZLPH/DL 1200-5K 1200 4000 4850 2150 2700 4.92 200 12.5 - 5 ZLPH/DL 1500-4K 1500 4200 5100 2500 3550 8.17 330 12.5 - 4 ZLPH/DL 1500-5K 1500 5250 6150 2500 3700 10.02 420 12.5 - 5 ZLPH/DL 1500-6K 1500 6300 7200 2550 3850 11.88 510 12.5 - 6 ZLPH/DL 1600-4K 1600 5500 6750 2600 3950 11.96 520 19.5 - 4 ZLPH/DL 1600-5K 1600 6600 7700 2700 4000 14.17 620 19.5 - 5 ZLPH/DL 1600-6K 1600 7100 8200 2700 4000 15.17 670 19.5 - 6 Model Dia.（mm） Drum L.（mm） Overall L.（mm） Overall W.（mm） Overall H.（mm） Volume Steam Consumption（kg） Power（KW） Tray（Set） Basket（pcs） Design T.（℃） Design P.（Mpa） Testing P.（Mpa） （m³） ZLPH/SY1000-3P 1000 2400 5100 4500 2200 2.12×2 135×2 12.4 3 —— 147 0.35 0.44 ZLPH/SY1200-3P 1200 3000 6250 5300 3000 3.45×2 165×2 28 3 —— ZLPH/SY1200-4P 1200 3600 6850 5300 3100 4.46×2 195×2 28 4 —— ZLPH/SY1200-5P 1200 4000 7250 5500 3100 5.48×2 215×2 28 5 —— ZLPH/SY1500-4P 1500 4000 8100 6600 3500 7.82×2 330×2 37 4 ——
